The role of network switches is well understood by everyone, so I won't introduce it in detail.
| Ikuai Official Network Switch | ||||

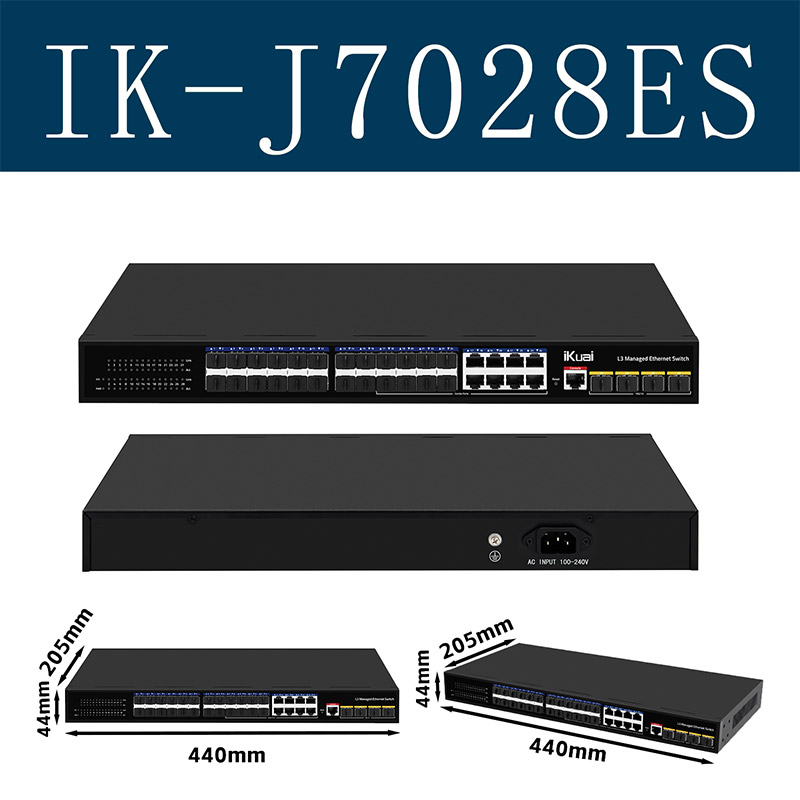

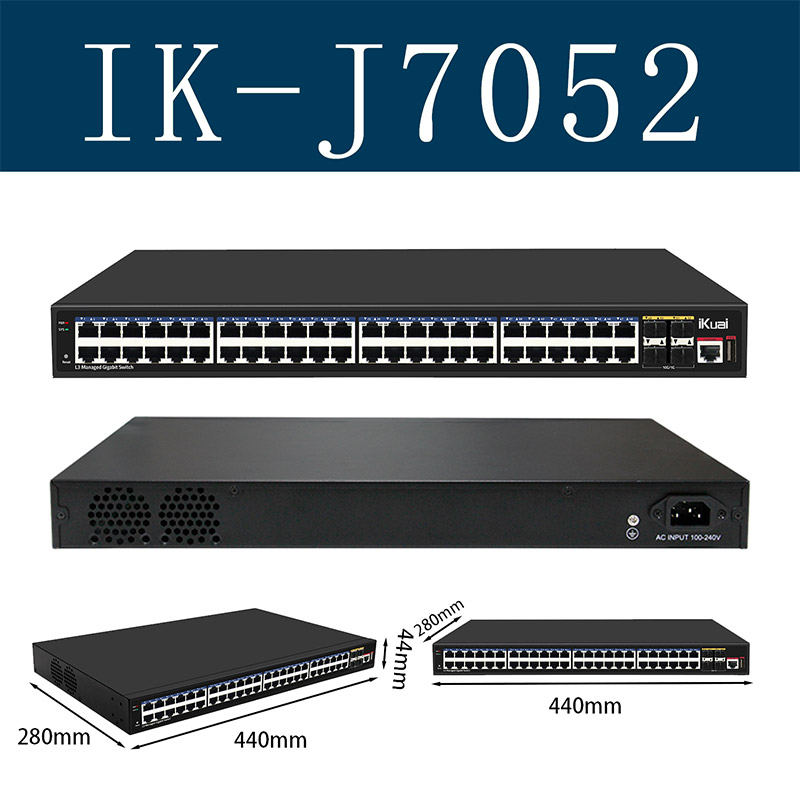

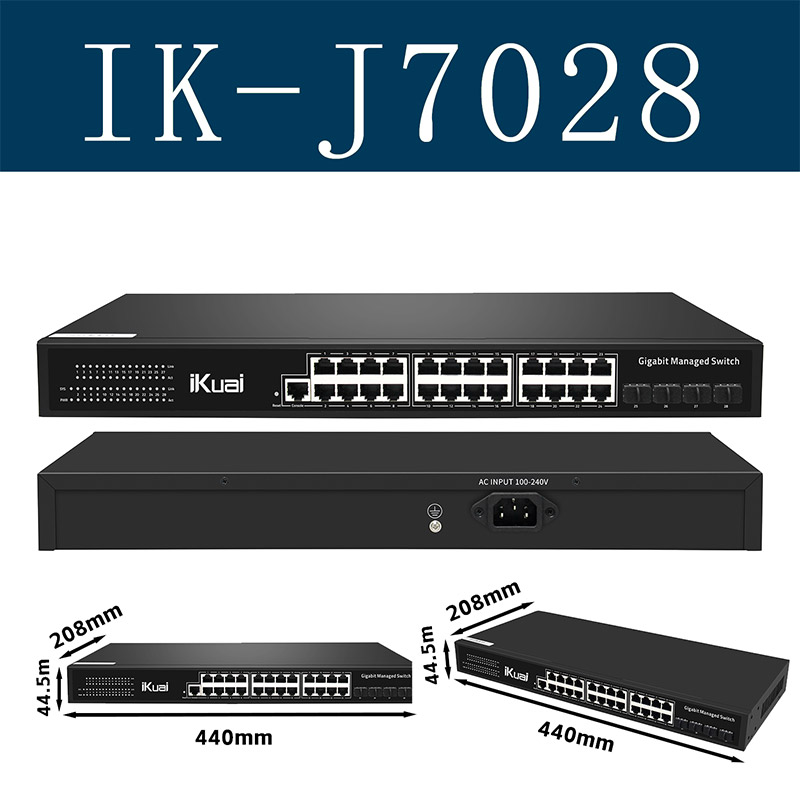

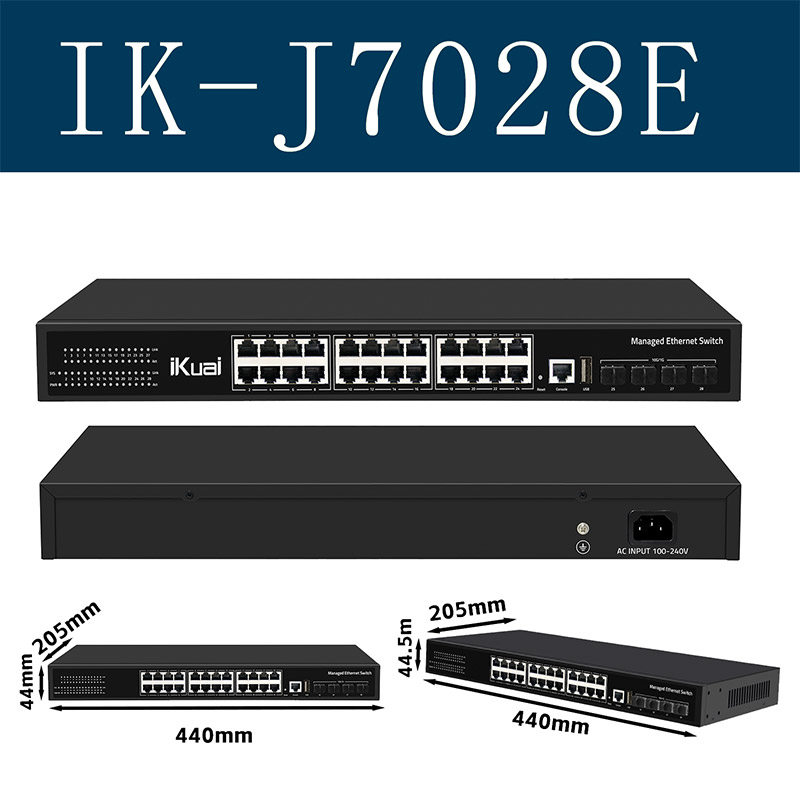

| model | IK-J7028 | IK-J7028E | IK-J7028ES | IK-J7052 |
| Tiers | 2 Layer | 3 Layer | 3 Layer | 3 Layer |
| interface | 24-10/100M/1000M | 24-10/100M/1000M Ports | 24-10/100M/1000M Ports | 48-10/100M/1000M Ports |
| SFP Ports | 4-1000M SFP Slots | 4-1000/10000M SFP Slots | 4-1000/10000Mbps SFP /8 * 10/100/1000Mbps Multiplex RJ45 port | 4-1000/10000M SFP+Slots |
| Backplane bandwidth | 56Gbps | 336Gbps | 336Gbps | 336Gbps |
| MAC Address | 8K | 8K | 16K | 16K |
| Packet forwarding rate | 41.66Mbps | 95.2Mpps | 95.23Mpps | 131Mpps |
| size | 440*208*44mm | 440*330*44.5mm | 440*205*44mm | 440x330x44mm |
| Power consumption | 36 W | 24 W |
39W | 72 W |
| Ikuai Official Network PoE Powered Switch | |||||

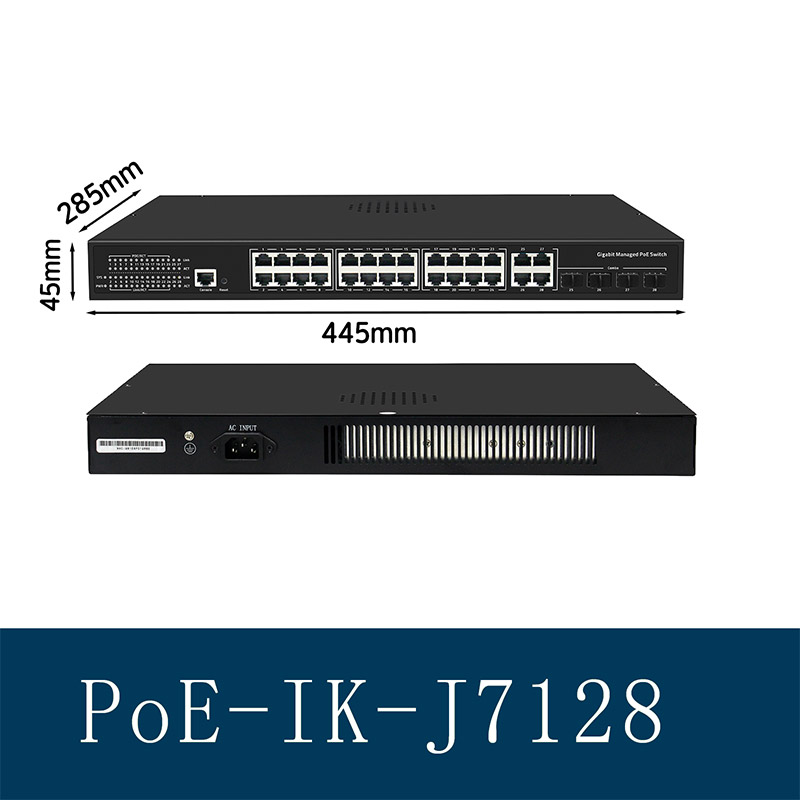

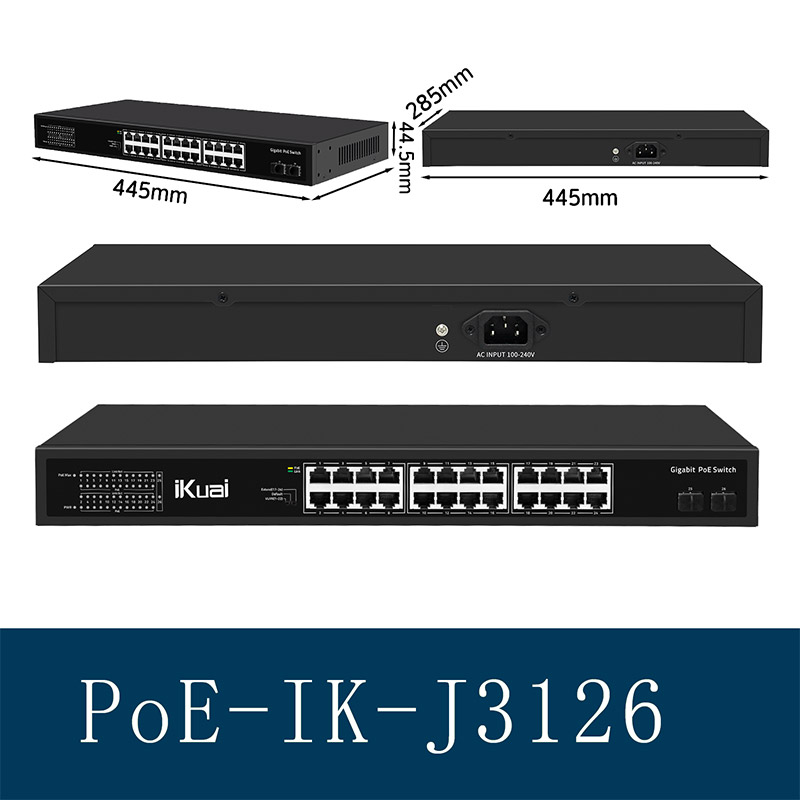

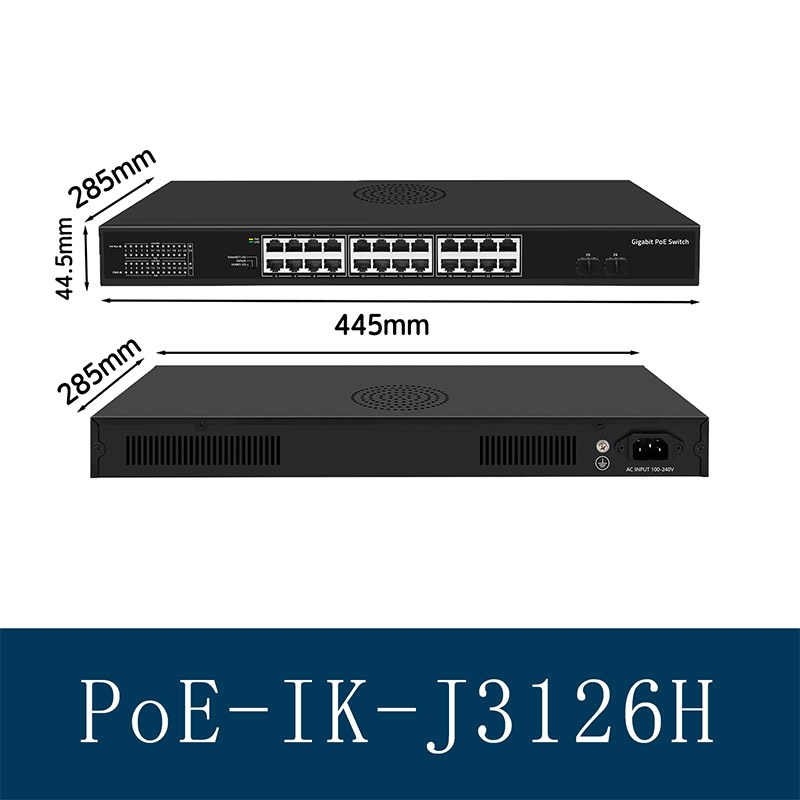

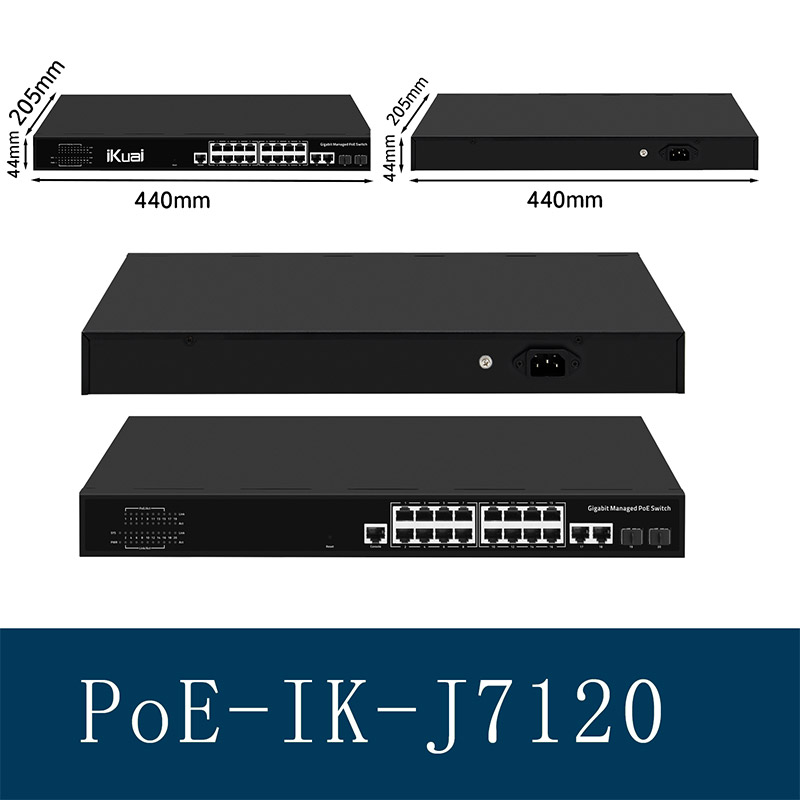

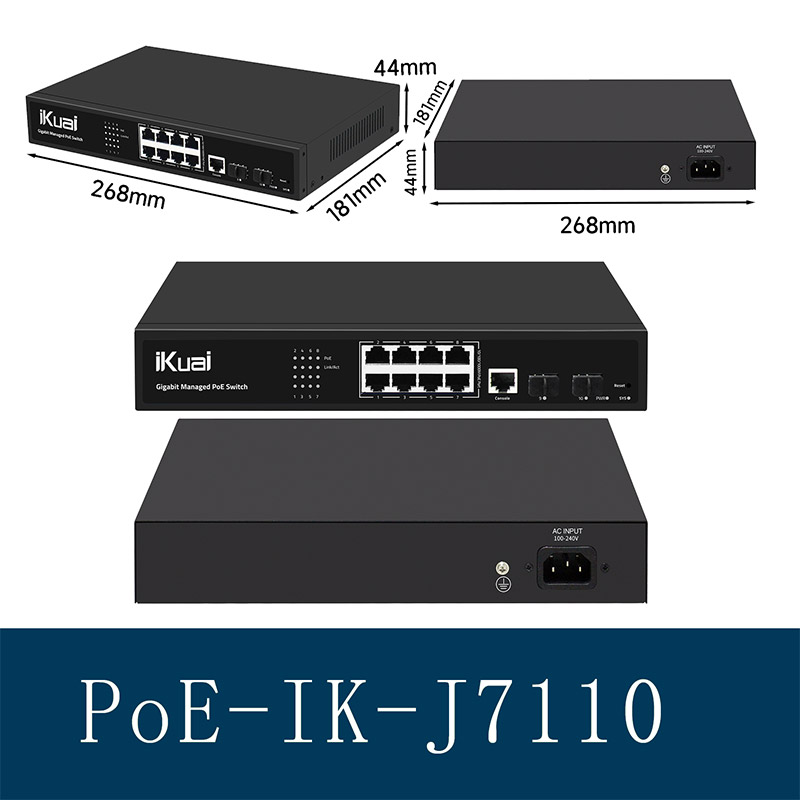

| model | IK-J3126 | IK-J3126H | IK-J7110 | IK-J7120 | IK-J7128 |
| interface | 24*10/100/1000M Ports | 24*10/100/1000M Ports | 8*10/100/1000M Ports | 16*10/100/1000M Ports | 24*10/100/1000M Ports |
| SFP Ports | 2*1000M SFP | 2*1000M SFP | 2*1000M SFP | 4*1000M SFP | 4*1000M SFP |
| size | 410x185x50mm | 410x185x50mm | 270x180x45mm | 440x204x44mm | 445*285*44mm |
| Power consumption | 280W | 400W | 96W | 300W | 400W |
| POE power supply | 300W | 380W | 120W | 280 W | 270W |
| Backplane bandwidth | 52Gbps | 52Gbps | 20Gbps | 40Gbps | 56Gbps |
| Packet forwarding rate | 38.7Mpps | 38.7Mpps | 14.88Mpps | 29.76Mpps | 41.66Mbps |
This product is recommended to be used with Ikuai gateway soft router for more convenience
