It is mainly used to build large mobile phone farms, which can successfully provide network for 300-10,000 mobile phones.

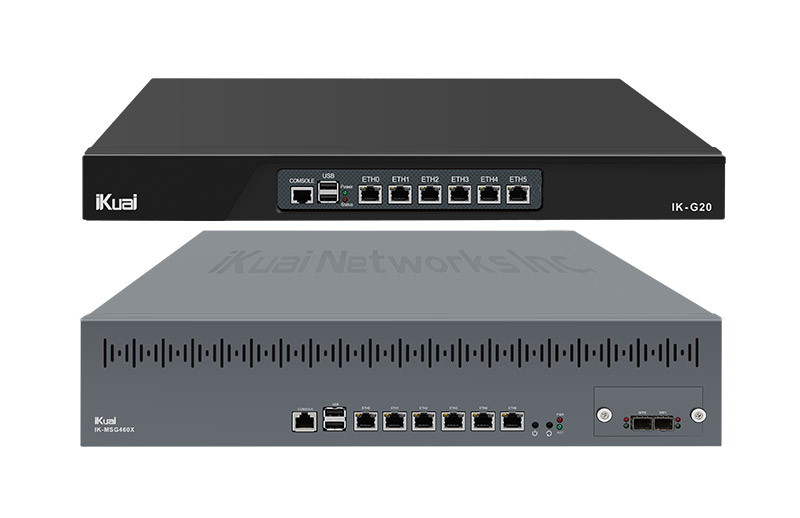

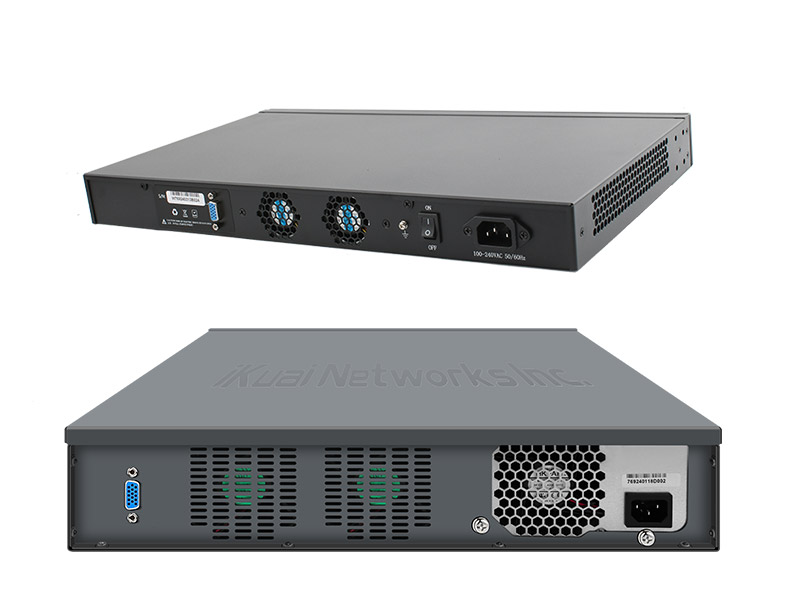

| Enterprise managed router for mobile farms | |||||||||
| model | IK-MSG100 | IK-MSG200 | IK-MSG260 | IK-MSG300 | IK-MSG400 | IK-MSG500 | IK-MSG460X | IK-MSG560X | IK-MSG600X |
| Ethernet Port | 6 x 2500Mbps Ethernet ports | 6 x 2500Mbps Ethernet ports | 6 x 2500Mbps Ethernet ports | 6 x 2500Mbps Ethernet ports | 6 x 2500Mbps Ethernet ports | 6 x 2500Mbps Ethernet ports | 6 x 2500Mbps Ethernet ports | 6 x 2500Mbps Ethernet ports | 6 x 2500Mbps Ethernet ports |
| SFP Ports | / | / | / | / | / | / | 2*10000Mbps SFP Ports | 2*10000Mbps SFP Ports | 2*10000Mbps SFP Ports |
| RAM | 4G | 4G | 4G | C | 8G | 16G | 8G | 16G | 32G |
| Flash | 16G | 16G | 16G | 16G | 32G | 32G | 32G | 32G | 32G |
| USB Port | 2*USB 2.0 | 2*USB 2.0 | 2*USB 3.0 | 2*USB 3.0 | 2*USB 3.0 | 2*USB 3.0 | 2*USB 3.0 | 2*USB 3.0 | 2*USB 3.0 |
| size | (440*250*44mm) 1U | (440*250*44mm) 1U | (440*250*44mm) 1U | (440*250*44mm) 1U | 440*250*44mm) 1U | (440*250*44mm) 1U | (435*435*88mm) 2U | (435*435*88mm) 2U | (435*435*88mm) 2U |
| powered by | AC 100～240V 50/60Hz | AC 100～240V 50/60Hz | AC 100～240V 50/60Hz | AC 100～240V 50/60Hz | AC 100～240V 50/60Hz | AC 100～240V 50/60Hz | AC 100～240V 50/60Hz | AC 100～240V 50/60Hz | AC 100～240V 50/60Hz |
| Power consumption | 25W | 25W | 30W | 70W | 30W | 35W | 60W | 60W | 80W |
| Number of manageable APs | 512 | 1024 | 512 | 2048 | 2048 | 2048 | 2048 | 2048 | 2048 |
| Mobile farm capacity | 300 | 500 | 800 | 1500 | 1500 | 2500 | 2000 | 5000 | 10000 |
| Unit Price(USD) | 350 | 420 | 630 | 910 | 1200 | 1400 | 1680 | 3210 | 4888 |
